JY25 Anti-noise Cnc Cable Drag Chain
Cable thiab hose cov cab kuj yog cov qauv hloov tau los ntawm cov kev sib txuas uas qhia thiab teeb tsa kev txav mus los thiab hose.Cov neeg nqa khoom kaw lub cable lossis hose thiab txav mus nrog lawv thaum lawv mus ncig ntawm cov tshuab lossis lwm yam khoom siv, tiv thaiv lawv ntawm kev hnav.Cable thiab hose cab kuj yog modular, yog li cov seem yuav raug ntxiv lossis tshem tawm raws li qhov xav tau yam tsis muaj cov cuab yeej tshwj xeeb.Lawv tau siv ntau qhov chaw, suav nrog kev tuav cov khoom siv, kev tsim kho, thiab kev siv tshuab hluav taws xob.
Cable Drag Chain - Cov hoses & hluav taws xob cables txuas nrog cov khoom siv hauv cov lus tsa suab tuaj yeem raug puas tsuaj raws li kev nruj nruj yog thov rau lawv;es tsis txhob siv Drag Chain tshem tawm qhov teeb meem no vim qhov nro yog siv rau ntawm Drag Chain yog li ua kom cov Cables & hoses tsis zoo & ua kom yooj yim txav.
Thaum tsim cable chains kev saib xyuas yuav tsum tau ua thaum xaiv thawj hom ntawm cov saw / cab kuj thiab thib ob hom cables yuav tsum tau haum rau cov saw, ua raws li los ntawm cov layout ntawm cov cables nyob rau hauv lub saw.Feem ntau ntawm cov saw loj tsim muaj qee cov ntaub ntawv qhia txog yuav ua li cas xaiv thiab teeb tsa lawv cov saw hlau kom ntseeg tau lub neej ntev tshaj plaws ntawm cov saw thiab nws cov ntsiab lus.Ua raws li cov lus qhia rau tsab ntawv yuav ua kom lub neej nyob ib puag ncig hauv 10 ntawm ntau lab lub voj voog, tab sis tseem yuav tsim cov saw hlau ntau dhau uas peb tsis tuaj yeem yooj yim haum rau hauv peb daim ntawv thov.
Qauv Rooj
| Qauv | Sab hauv H × W | Outer HX W | Khoov Radius | Suab | Tsis txhawb nqa ntev | Style |
| JY 25 X 38 | 25 x38 | 36x59 ib | 55.75.100 Nws | 22 | 1.5 meters | Choj hom, Sab saum toj thiab hauv qab hau tuaj yeem qhib |
| JY 25 X 50 | 25 x50 | 36x71 ib | ||||
| wb 25x57 | 25 x57 | 36 x78 | ||||
| JY 25 X 75 | 25 x75 | 36 x96 | ||||
| JY 25 X 100 | 25 x 100 | 36 x121 |

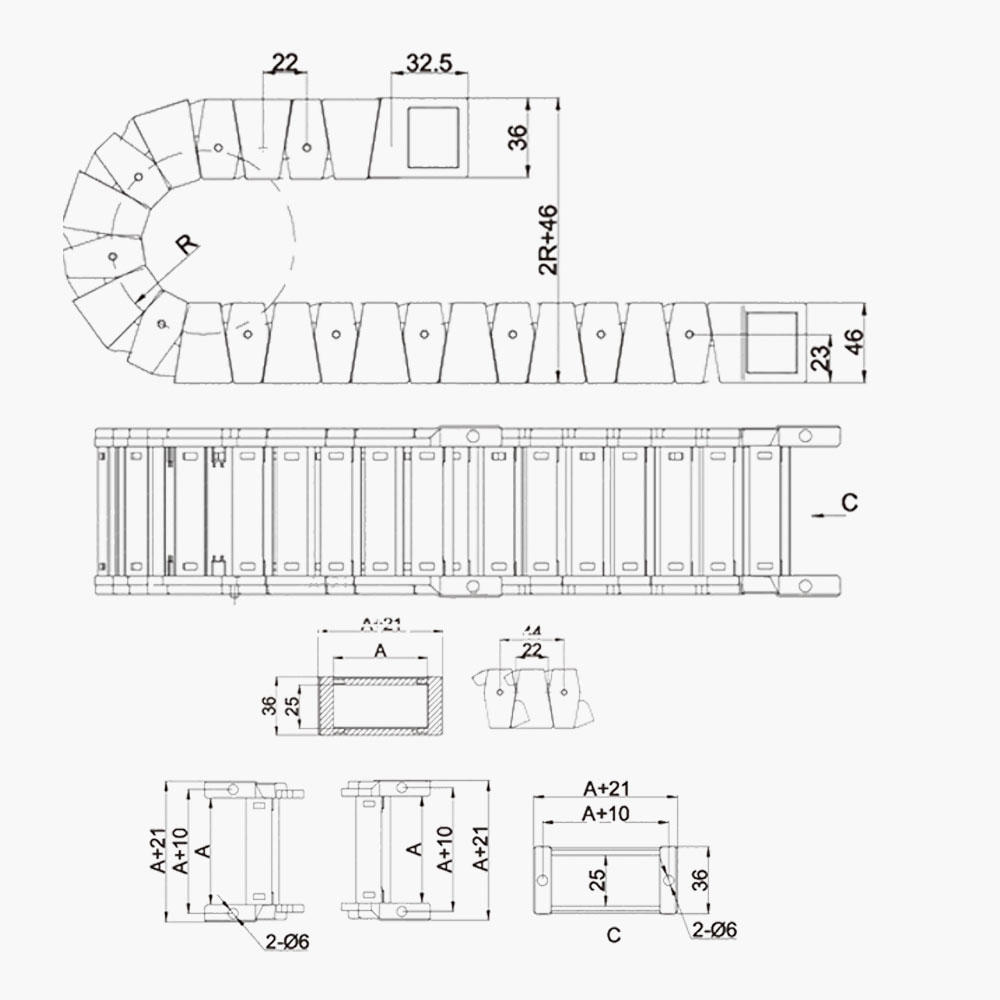

Daim duab qauv
Daim ntawv thov
Cable rub chains tuaj yeem siv tau rau ntau yam kev siv, txhua qhov chaw muaj cov cables lossis hoses.muaj ntau daim ntawv thov suav nrog;tshuab cuab yeej, txheej txheem thiab automation machinery, tsheb thauj mus los, tsheb ntxuav tshuab thiab cranes.Cable drag chains tuaj nyob rau hauv ib tug heev loj ntau yam ntawm ntau thiab tsawg.
