KQ20 Choj hom Economical Zog Drag Chain

Lus piav qhia luv luv:

Cable Drag Chain - Cov hoses & hluav taws xob cables txuas nrog cov khoom siv hauv cov lus tsa suab tuaj yeem raug puas tsuaj raws li kev nruj nruj yog siv rau lawv;es tsis txhob siv Drag Chain tshem tawm qhov teeb meem no vim qhov nro yog siv rau ntawm Drag Chain yog li ua kom cov Cables & hoses tsis zoo & ua kom yooj yim txav.


Product Detail

Khoom cim npe

Cable Drag Chain - Cov hoses & hluav taws xob cables txuas nrog cov khoom siv hauv cov lus tsa suab tuaj yeem raug puas tsuaj raws li kev nruj nruj yog thov rau lawv;es tsis txhob siv Drag Chain tshem tawm qhov teeb meem no vim qhov nro yog siv rau ntawm Drag Chain yog li ua kom cov Cables & hoses tsis zoo & ua kom yooj yim txav.

Cov yam ntxwv tseem ceeb muaj xws li qhov hnyav, tsis tshua muaj suab nrov, tsis muaj kev cuam tshuam, tuav tau yooj yim, tsis muaj corrosive, yooj yim ntawm kev sib dhos vim snap haum, txij nkawm tsis pub dawb, muaj nyob rau hauv kev cai ntev, cov khoom sib cais kom cais cov cables / hoses, tuaj yeem siv rau ib sab nyob rau hauv cov ntaub ntawv ntawm cov cables yog ntau, nce cable / hoses lub neej, modular tsim simplifies cable / hose tu.

Lub Cable Drag Chain yog cov rooj sib txoos ntawm ib chav nyob uas tau tsim los tsim cov saw hlau rau qhov ntev.

Stainless cable saw ntse ua haujlwm hauv cov tshuaj lom neeg nruj heev.

Raws li qhov kev thov ntawm cov neeg siv khoom, peb ua tiav cov kab cab cab kab hluav taws xob kho thiab qhia cov tshuab hauv daim ntawv ntawm cov tais diav, tuav, cov menyuam, thiab lwm yam.

Peb qhov zoo dua yog kev txhim kho cov haujlwm thiab muab cov hlua khi hlua khi nrog cov hlua hauv.

Txheem cable thiab hose cab kuj muaj ib tug qhib tsim thiab siv nyob rau hauv lub hom phiaj daim ntawv thov.Heavy-duty steel cable thiab hose nqa kuj muaj kev tsim kho tab sis tsim nyog rau qhov xav tau ntau dua li cov neeg nqa khoom txheem.Cov kab hluav taws xob thiab cov kav dej hose kaw tag nrho cov neeg siv hluav taws xob los muab kev tiv thaiv ntau dua los ntawm cov khib nyiab ntau dua li cov qauv qhib.Multiaxis cable thiab hose carriers tig thiab flex nyob rau hauv txhua txoj kev thiab yog feem ntau siv nyob rau hauv robotics daim ntaub ntawv.

Qauv Rooj

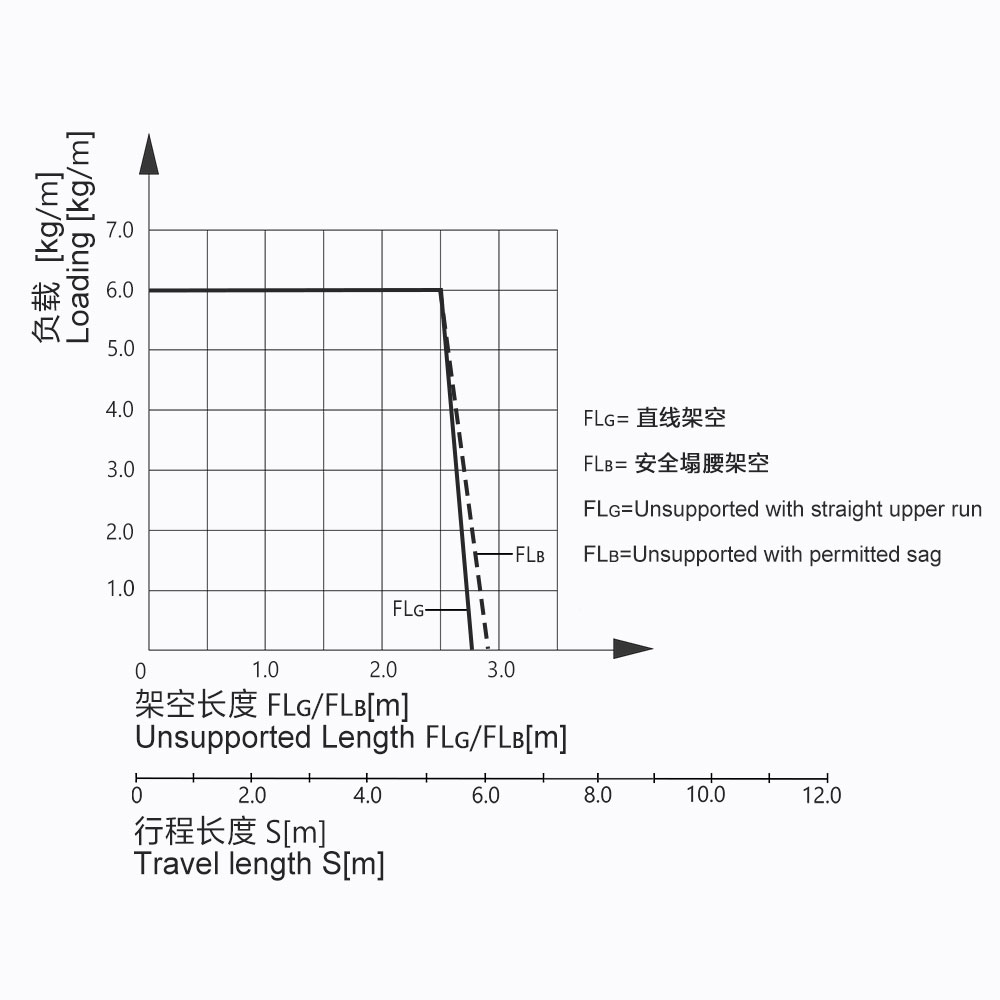

Qauv Sab hauv H × W sab nrauv H*W Style Khoov Radius Suab Tsis txhawb nqa ntev
qw 20x25 20 x 25 35 x48 Choj hom Sab saum toj thiab hauv qab hau tuaj yeem qhib 55.75 ib 47 1.5m ua
qw 20x38 20 x38 35 x61
qw 20x50 20 x 50 35x73 ua
qw 20x57 20 x57 35 x80
qw 20x65 20 x65 35x88 ua
qw 20x70 20 x70 35x9 3
qw 20x75 20 x75 35x98 ua
KQ 20 x 100 20 x 100 35 x123
qw 20x103 20 x103 35 x126

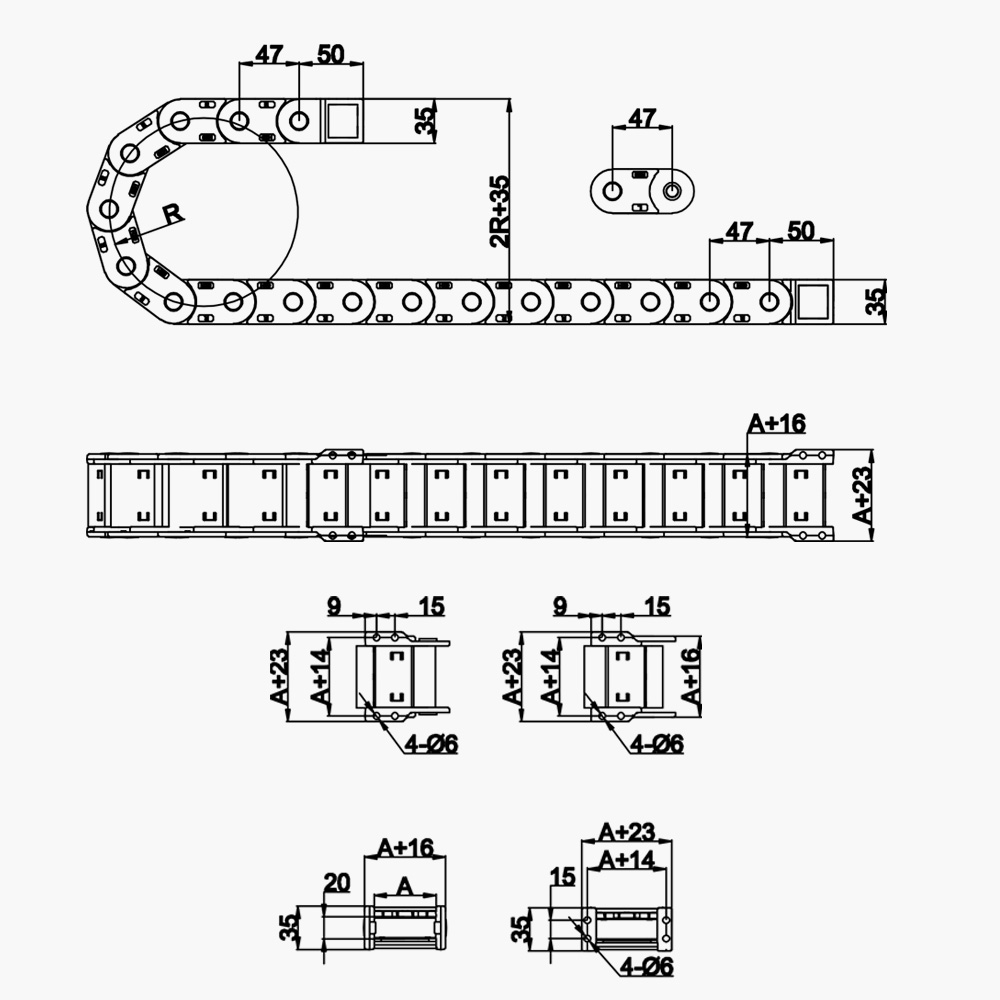

Daim duab qauv

KQ20-series-BRIDGE-type-Schematic

Daim ntawv thov

Cable rub chains tuaj yeem siv tau rau ntau yam kev siv, txhua qhov chaw muaj cov cables lossis hoses.muaj ntau daim ntawv thov suav nrog;tshuab cuab yeej, txheej txheem thiab automation machinery, tsheb thauj mus los, tsheb ntxuav tshuab thiab cranes.Cable drag chains tuaj nyob rau hauv ib tug heev loj ntau yam ntawm ntau thiab tsawg.
