TZ18 Qhib Cnc Cable Drag Chain
Kev tsim kho ntawm Drag Chains
1. Cov tsos ntawm cov saw zoo li lub crawler ntawm lub tank muaj qee cov pob qij txha.Cov pob qij txha ntawm crawler yog dawb do tig mus.
2. Tib cov saw hlau muaj tib qhov siab sab hauv thiab tawm qhov siab thiab tib lub suab tab sis sab hauv qhov siab thiab khoov lub vojvoog R tuaj yeem ua rau qhov sib txawv specifications.
3. Ib qho kev sib koom ua ke ntawm cov saw hlau yog tsim los ntawm sab laug-txoj cai saw phaj thiab lub hau updown.Txhua txoj hlua txuas tuaj yeem qhib tau kom yooj yim rau kev sib dhos thiab dismantal yam tsis muaj threading.Cables, roj kav thiab roj kav yuav muab tso rau hauv lub luag. saw tom qab lub hau npog qhib.
Qauv Rooj

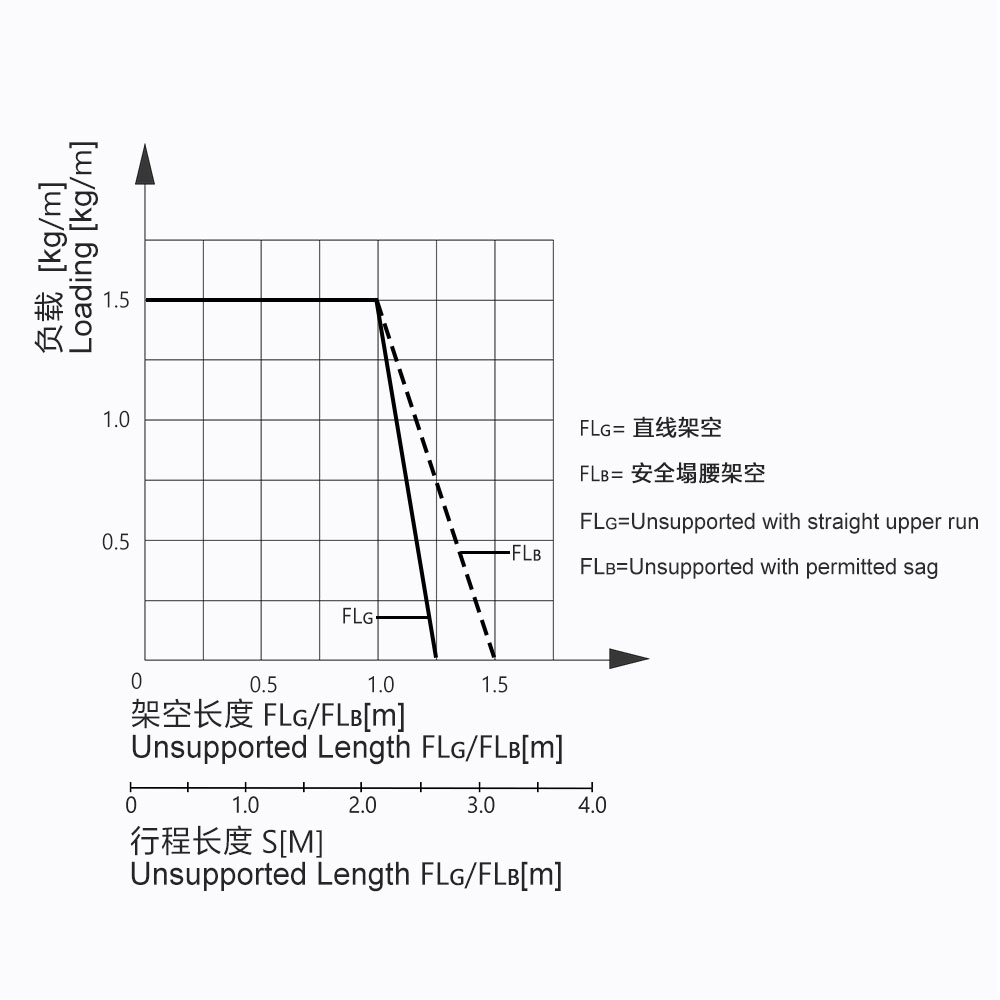

| Qauv | Sab hauv H × W | Outer HXW | Suab | Khoov Radius | Suab | Tsis txhawb nqa ntev | Style | ||
| B1 | B2 | B3 | |||||||
| TZB-18.18 | 18 x18 | 23 x31 | 12 | 6.5 | 6 | 28.38.48 Nws | 30 | 1.5 | Ib nrab-pob thiab hauv qab lub hau tuaj yeem qhib |
| TZB-18.25 | 18 x 25 | 23 x38 | 19.5 Nws | 6 | 6 | 28.38.48 Nws | 30 | 1.5 | |
| TZB-18.38 | 18 x38 | 23 x51 | 25 | 6 | 6 | 28.38.48 Nws | 30 | 1.5 | |
| TZB-18.50 | 18 x50 | 23 x63 | 30 | 7 | 7 | 28.38.48 Nws | 30 | 1.5 | |

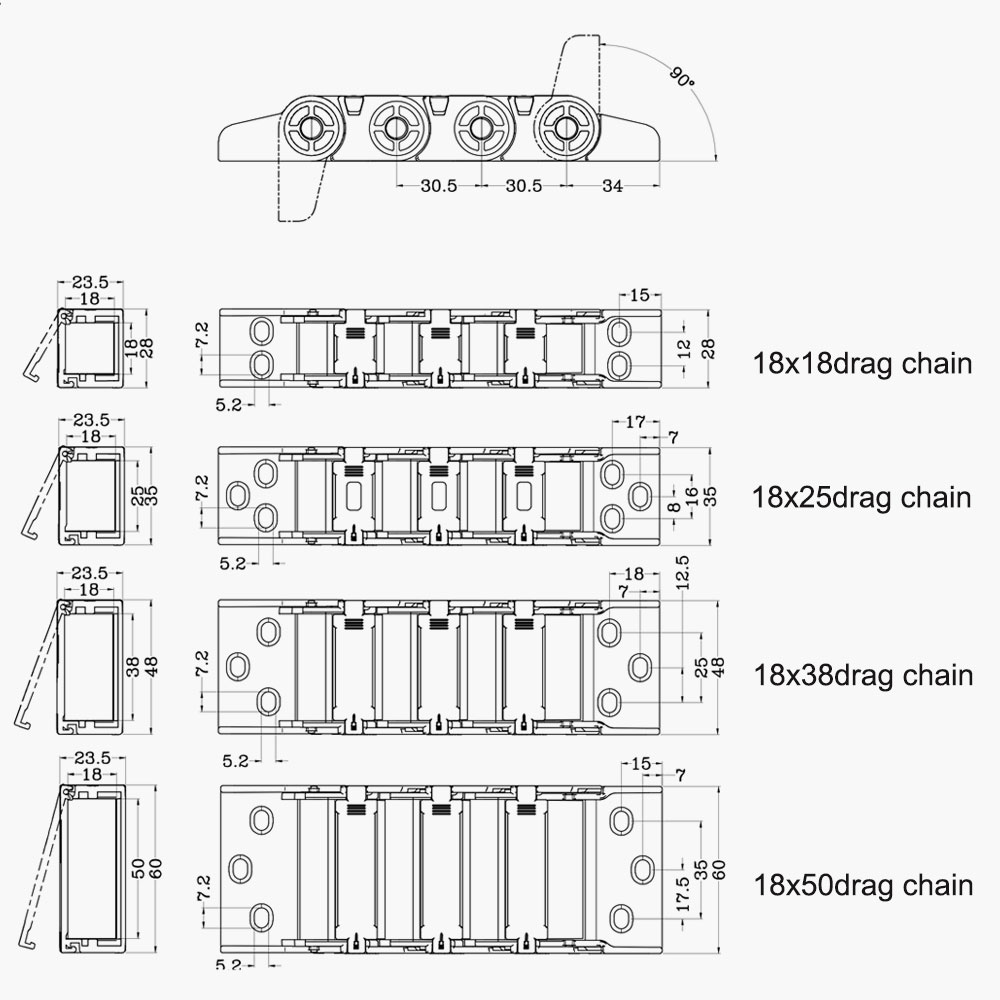

Daim duab qauv
Daim ntawv thov
Thaum tsim cable chains kev saib xyuas yuav tsum tau ua thaum xaiv thawj hom ntawm cov saw / cab kuj thiab thib ob hom cables yuav tsum tau haum rau cov saw, ua raws li los ntawm cov layout ntawm cov cables nyob rau hauv lub saw.Feem ntau ntawm cov saw loj tsim muaj qee cov ntaub ntawv qhia txog yuav ua li cas xaiv thiab teeb tsa lawv cov saw hlau kom ntseeg tau lub neej ntev tshaj plaws ntawm cov saw thiab nws cov ntsiab lus.Ua raws li cov lus qhia rau tsab ntawv yuav ua kom lub neej nyob ib puag ncig hauv 10 ntawm ntau lab lub voj voog, tab sis tseem yuav tsim cov saw hlau ntau dhau uas peb tsis tuaj yeem yooj yim haum rau hauv peb daim ntawv thov.
