ZF35D Ob-kab Tag Nrho-kaw hom Load Bearing Hluav Taws Xob Drag Chain
Txheem cable thiab hose cab kuj muaj ib tug qhib tsim thiab siv nyob rau hauv lub hom phiaj daim ntawv thov.Heavy-duty steel cable thiab hose nqa kuj muaj kev tsim kho tab sis tsim nyog rau qhov xav tau ntau dua li cov neeg nqa khoom txheem.Cov kab hluav taws xob thiab cov kav dej hose kaw tag nrho cov neeg siv hluav taws xob los muab kev tiv thaiv ntau dua los ntawm cov khib nyiab ntau dua li cov qauv qhib.Multiaxis cable thiab hose carriers tig thiab flex nyob rau hauv txhua txoj kev thiab yog feem ntau siv nyob rau hauv robotics daim ntaub ntawv.
Thaum tsim cable chains kev saib xyuas yuav tsum tau ua thaum xaiv thawj hom ntawm cov saw / cab kuj thiab thib ob hom cables yuav tsum tau haum rau cov saw, ua raws li los ntawm cov layout ntawm cov cables nyob rau hauv lub saw.Feem ntau ntawm cov saw loj tsim muaj qee cov ntaub ntawv qhia txog yuav ua li cas xaiv thiab teeb tsa lawv cov saw hlau kom ntseeg tau lub neej ntev tshaj plaws ntawm cov saw thiab nws cov ntsiab lus.Ua raws li cov lus qhia rau tsab ntawv yuav ua kom lub neej nyob ib puag ncig hauv 10 ntawm ntau lab lub voj voog, tab sis tseem yuav tsim cov saw hlau ntau dhau uas peb tsis tuaj yeem yooj yim haum rau hauv peb daim ntawv thov.
Qhov zoo
Qib siab ntawm kev tiv thaiv kev puas tsuaj ntawm cov khoom sib txawv,
High-speed txav ntawm cov khoom siv thiab tshuab,
Muaj peev xwm siv tag nrho qhov ntev ntawm kev khiav raws li thaj chaw ua haujlwm.
Trucking tam sim no feeder yog ib qho tseem ceeb ntawm txhua yam kev lag luam machinery, tshuab cuab yeej, crane, - cables, xov hlau, hydraulic thiab pneumatic hoses, uas yog tas li raug rau txhua yam thiab climatic influences.
Yas thiab steel zog chains yuav siv tau nyob rau hauv ib tug kub ntawm -40 ° C mus rau + 130 ° C.
Qauv Rooj
| Qauv | Sab hauv H × W (A) | sab nrauv H | Sab nrauv W | Style | Khoov Radius | Suab | Tsis txhawb nqa ntev |
| ZF 35-2x50D | 35 x50 | 58 | 2 A+45 | Npog tag nrho Sab saum toj thiab hauv qab lub hau tuaj yeem qhib | 75.100 Nws. 125. 150. 175. 200. 250. 300. | 66 | 3,8m ua |
| ZF 35-2x60D | 35 x60 | ||||||
| ZF 35-2x75D | 35x75 ua | ||||||
| ZF 35-2x100D | 35 x 100 |

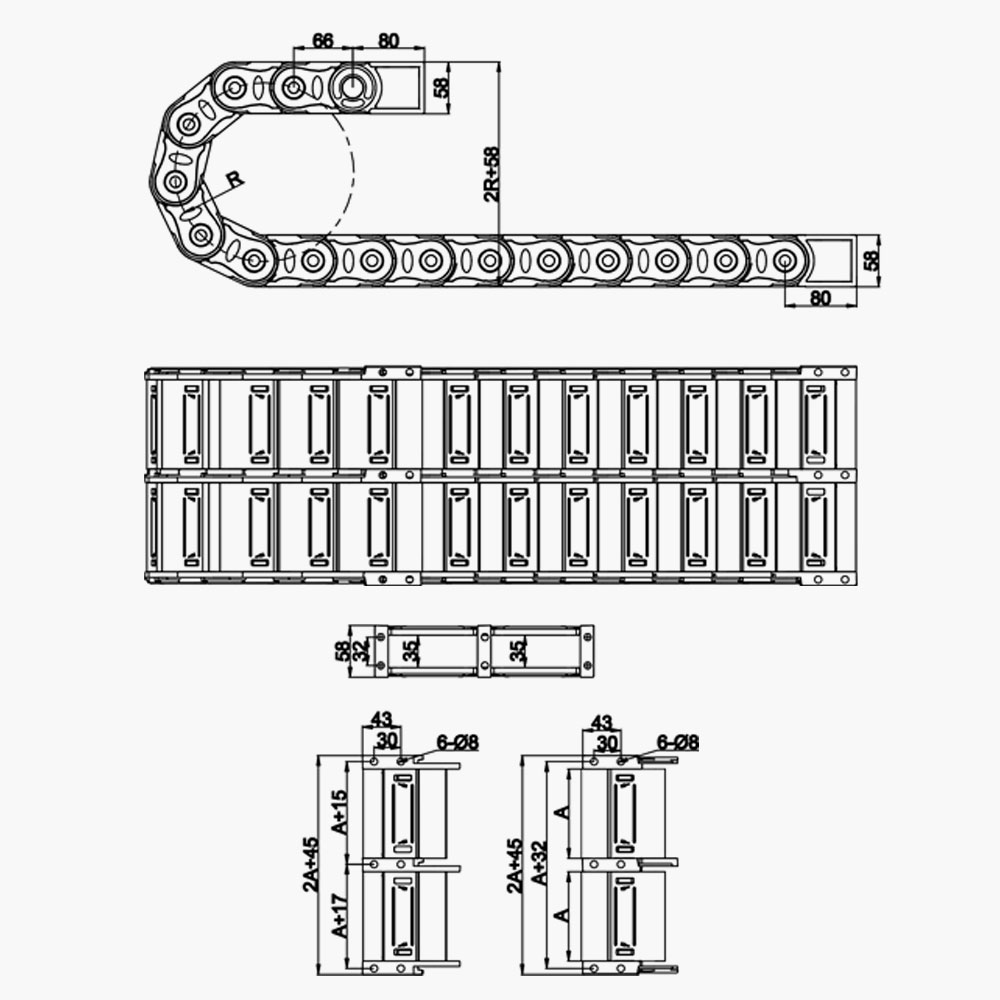

Daim duab qauv
Daim ntawv thov
Cable rub chains tuaj yeem siv tau rau ntau yam kev siv, txhua qhov chaw muaj cov cables lossis hoses.muaj ntau daim ntawv thov suav nrog;tshuab cuab yeej, txheej txheem thiab automation machinery, tsheb thauj mus los, tsheb ntxuav tshuab thiab cranes.Cable drag chains tuaj nyob rau hauv ib tug heev loj ntau yam ntawm ntau thiab tsawg.
