ZF45 Puv-kaw hom Load Bearing Drag Chain Cable
1.Lub KF series cable cab kuj saw yog ib tug tag nrho enclosed hom.Cov saw hlau tuaj yeem tiv thaiv cov plua plav thiab cov khib nyiab uas tsim los rau hauv cov txheej txheem kub kub los ntawm kev nkag mus rau cov saw hlau.Hom kab hluav taws xob no tuaj yeem qhib sai sai raws lub voj voog sab hauv lossis sab nraud, thiab sib sau ua ke sai.Cov qauv tsim qauv ua rau nws yooj yim los txiav lossis txuas cov saw ntev raws li daim ntawv thov xav tau.
2. Qhov zawj nruab nrog lub tshuab cais tawm tuaj yeem cais tawm lub zog sib txawv
qhov chaw, ua rau kev thauj mus los ntawm lub zog muaj kev nyab xeeb thiab siv tau zoo dua.Peb qhia
cov neeg siv cov khoom sib cais thaum a: muaj cov khoom sib txawv xws li cov kav dej hydraulic, cov kav dej, cov kav dej thiab cov cables, los yog b: cov loads yog tib yam, tab sis cov khoom loj.
3.Qhov txwv txwv tau ntxiv rau qhov ntev ntawm txoj kab nyiaj siv ua haujlwm, uas tau txuas ntxiv qhov nqa ntawm cov cab cab cab.
Thaum tsim cable chains kev saib xyuas yuav tsum tau ua thaum xaiv thawj hom ntawm cov saw / cab kuj thiab thib ob hom cables yuav tsum tau haum rau cov saw, ua raws li los ntawm cov layout ntawm cov cables nyob rau hauv lub saw.Feem ntau ntawm cov saw loj tsim muaj qee cov ntaub ntawv qhia txog yuav ua li cas xaiv thiab teeb tsa lawv cov saw hlau kom ntseeg tau lub neej ntev tshaj plaws ntawm cov saw thiab nws cov ntsiab lus.Ua raws li cov lus qhia rau tsab ntawv yuav ua kom lub neej nyob ib puag ncig hauv 10 ntawm ntau lab lub voj voog, tab sis tseem yuav tsim cov saw hlau ntau dhau uas peb tsis tuaj yeem yooj yim haum rau hauv peb daim ntawv thov.
Qauv Rooj
| Qauv | Sab hauv H × W (A) | Outer H*W | Style | Khoov Radius | Suab | Tsis txhawb nqa ntev |
| ZF 45-3x50 | 45 x50 | 68 x80 | Npog tag nrho | 75. 100. 125. 150. 175. 200. 250. 300. | 66 | 3,8m ua |
| ZF 45-3x60 | 45 x60 | 68 x90 | ||||
| ZF 45-3x75 | 45x7 5 | 68 x105 | ||||
| ZF 45-3x100 | 45 x 100 | 68 x130 |

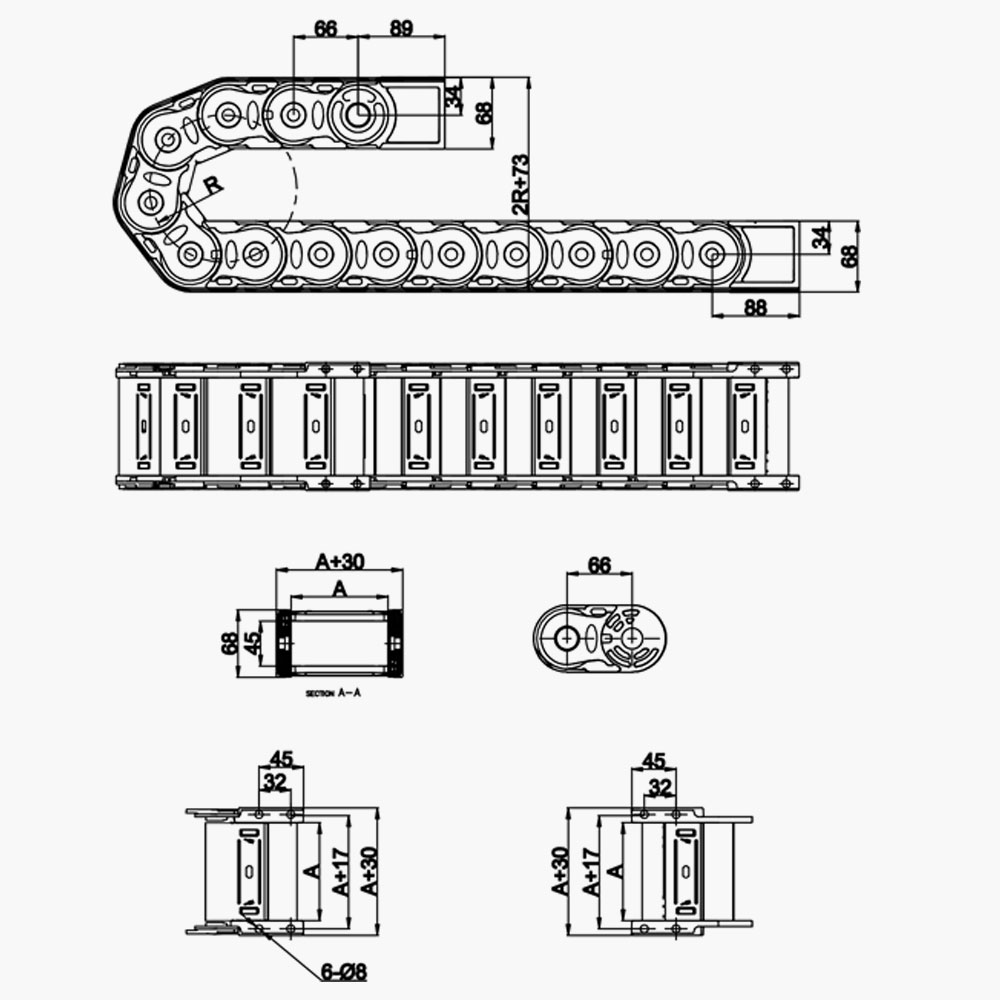

Daim duab qauv
Daim ntawv thov
Lub Drag saw tau siv dav hauv CNC tshuab cuab yeej, khoom siv hluav taws xob, hluav taws xob tshuab, tshuab zeb, iav machinery, qhov rooj thiab qhov rais machinery, tshuab txhaj tshuaj, neeg hlau, khoom siv thauj khoom hnyav, automated warehouses thiab lwm yam.
