ZF56 Puv-kaw hom Load Bearing Yas Cable Drag Chain
Cov cab kuj, tseem hu ua cab chains, lub zog chains, los yog cable chains nyob ntawm cov chaw tsim khoom, yog cov kev taw qhia tsim los nyob ib puag ncig thiab coj cov khoom siv hluav taws xob hloov tau yooj yim thiab hydraulic lossis pneumatic hoses txuas nrog kev txav mus los.Lawv txo qhov hnav thiab kev ntxhov siab ntawm cov cables thiab hoses, tiv thaiv kev cuam tshuam, thiab txhim kho kev nyab xeeb ntawm cov neeg siv khoom.
Cov cab kuj tuaj yeem raug teeb tsa kom haum raws li kab rov tav, ntsug, tig thiab peb-dimensional txav.
Khoom siv: Cov cab kuj Cable yog ejected rau hauv tsim los ntawm polyester.
Lub Flange yog tsim los ntawm hnyav hnyav xuas nrig ntaus.
Yam ntxwv
1.Thaum lub tes tsho tiv thaiv txav mus, cov kab yog du thiab zoo nkauj.
2. Rigidity muaj zog tsis muaj deformation.
3. Qhov ntev ntawm lub tes tsho tiv thaiv tuaj yeem ua kom ntev lossis luv luv ntawm qhov xav tau.
4. Thaum lub sij hawm txij nkawm ntawm sab hauv cable rub chains, kev tsim kho tuaj yeem ua tau los ntawm kev tshem tawm cov npog tiv thaiv yooj yim.
5. Lub kaw ntom nti yog qhov zoo, yuav tsis khawb
Niaj hnub no cov cab kuj muaj nyob rau hauv ntau yam sib txawv, qhov ntau thiab tsawg, tus nqi thiab kev ua tau zoo.Qee qhov kev hloov pauv hauv qab no yog:
● Qhib
● Kaw (kev tiv thaiv los ntawm cov av thiab cov khib nyiab, xws li ntoo chips lossis hlau shavings)
● Hlau lossis Stainless hlau
● Tsawg suab nrov
● Cleanroom ua raws (tseem ceeb heev)
● Multi-axis txav
● High load resistant
● Tshuaj, dej thiab kub resistant
Qauv Rooj
| Qauv | Sab hauv H × W (A) | Outer H*W | Style | Khoov Radius | Suab | Tsis txhawb nqa ntev |
| ZF 56x250 | 56x25 0 | 94x29 2 | Npog tag nrho | 125.150.200.250.300 Nws | 90 | 3,8m ua |
| ZF 56x300 | 5 6x300 | 9 4x342 | ||||
| ZF 56x100 | 56 x 100 | 9 4x142 | ||||
| ZF 56x150 | 56 x 150 | 94x19 2 |

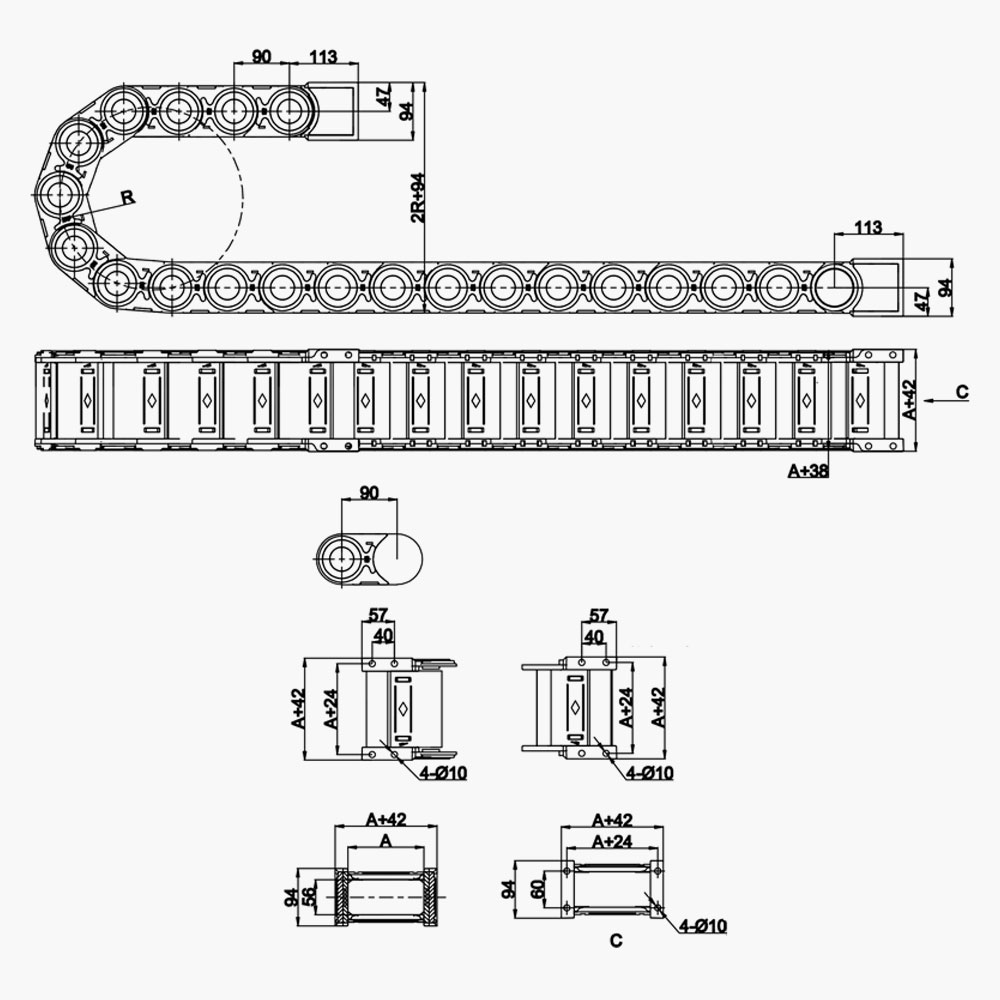

Daim duab qauv
Daim ntawv thov
Cable thiab hose cov cab kuj yog cov qauv hloov tau los ntawm cov kev sib txuas uas qhia thiab teeb tsa kev txav mus los thiab hose.Cov neeg nqa khoom kaw lub cable lossis hose thiab txav mus nrog lawv thaum lawv mus ncig ntawm cov tshuab lossis lwm yam khoom siv, tiv thaiv lawv ntawm kev hnav.Cable thiab hose cab kuj yog modular, yog li cov seem yuav raug ntxiv lossis tshem tawm raws li qhov xav tau yam tsis muaj cov cuab yeej tshwj xeeb.Lawv tau siv ntau qhov chaw, suav nrog kev tuav cov khoom siv, kev tsim kho, thiab kev siv tshuab hluav taws xob.
