ZQ35 Choj hom Load Bearing Nylon Drag Saw
Cov Hlua Hlau Cable Drag - Cov hoses & cov xov hluav taws xob txuas nrog cov khoom siv hauv kev txav mus los yuav raug puas tsuaj vim tias kev nruj ncaj qha raug siv rau lawv; es tsis txhob siv Drag Chain tshem tawm qhov teeb meem no vim tias kev nruj raug siv rau ntawm Drag Chain yog li ua kom Cov Cables & cov hoses nyob ruaj khov & pab txhawb kev txav mus los du.
Thaum tsim cov saw hlau, yuav tsum tau ceev faj thaum xaiv thawj hom saw hlau/tus nqa thiab qhov thib ob hom cables uas yuav tsum tau teeb tsa rau ntawm saw hlau, ua raws li qhov kev teeb tsa ntawm cov cables hauv saw hlau. Feem ntau ntawm cov chaw tsim khoom loj muaj qee cov ntaub ntawv qhia txog yuav ua li cas xaiv thiab teeb tsa lawv cov saw hlau kom ntseeg tau tias lub neej ntev tshaj plaws ntawm ob qho tib si saw hlau thiab nws cov ntsiab lus. Kev ua raws li cov lus qhia rau tsab ntawv yuav ua kom lub neej feem ntau nyob hauv 10 lab lub voj voog, tab sis kuj tseem yuav tsim cov saw hlau dav dhau uas peb tsis tuaj yeem haum rau peb cov ntawv thov.
Qhov zoo
Kev tiv thaiv siab tiv thaiv kev puas tsuaj ntawm cov neeg sib txawv,
Kev txav mus los ceev ceev ntawm cov khoom siv thiab tshuab,
Lub peev xwm siv tag nrho qhov ntev ntawm txoj kev ua thaj chaw ua haujlwm.
Kev thauj khoom tam sim no yog ib qho tseem ceeb ntawm txhua yam tshuab kev lag luam, cov cuab yeej siv tshuab, crane, - cables, xov hlau, hydraulic thiab pneumatic hoses, uas ib txwm raug rau cov khoom siv kho tshuab thiab huab cua.
Cov saw hlau yas thiab hlau siv tau rau hauv qhov kub thiab txias txij li -40 ° C txog + 130 ° C.
Qauv Rooj
| Qauv | Sab Hauv Siab × W (A) | sab nraud H*W | Qauv | Qhov Khoov Radius | Suab | Qhov ntev tsis txhawb nqa |
| ZQ 35-2x50 | 35x50 | 58X80 | Hom Choj Lub hau sab saud thiab hauv qab tuaj yeem qhib tau | 75. 100. 125. 150. 175. 200. 250. 300 | 66 | 3.8m |
| ZQ 35-2x75 | 35x75 | 58X105 | ||||
| ZQ 35-2x100 | 35x100 | 58X130 | ||||
| ZQ 35-2x125 | 35x125 | 58X155 | ||||
| ZQ 35-2x150 | 35x150 | 58X180 | ||||
| ZQ 35-2x200 | 35x200 | 58X230 |

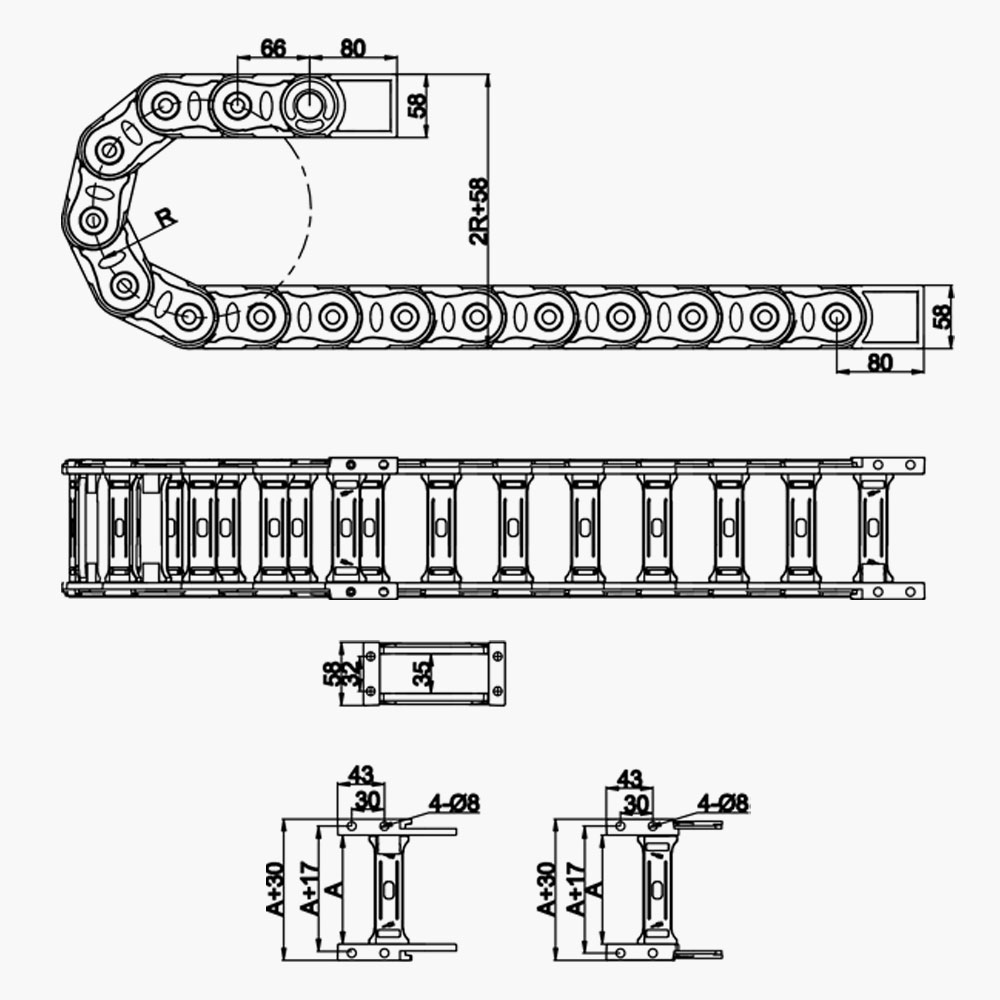

Daim Duab Qhia Txog Qauv

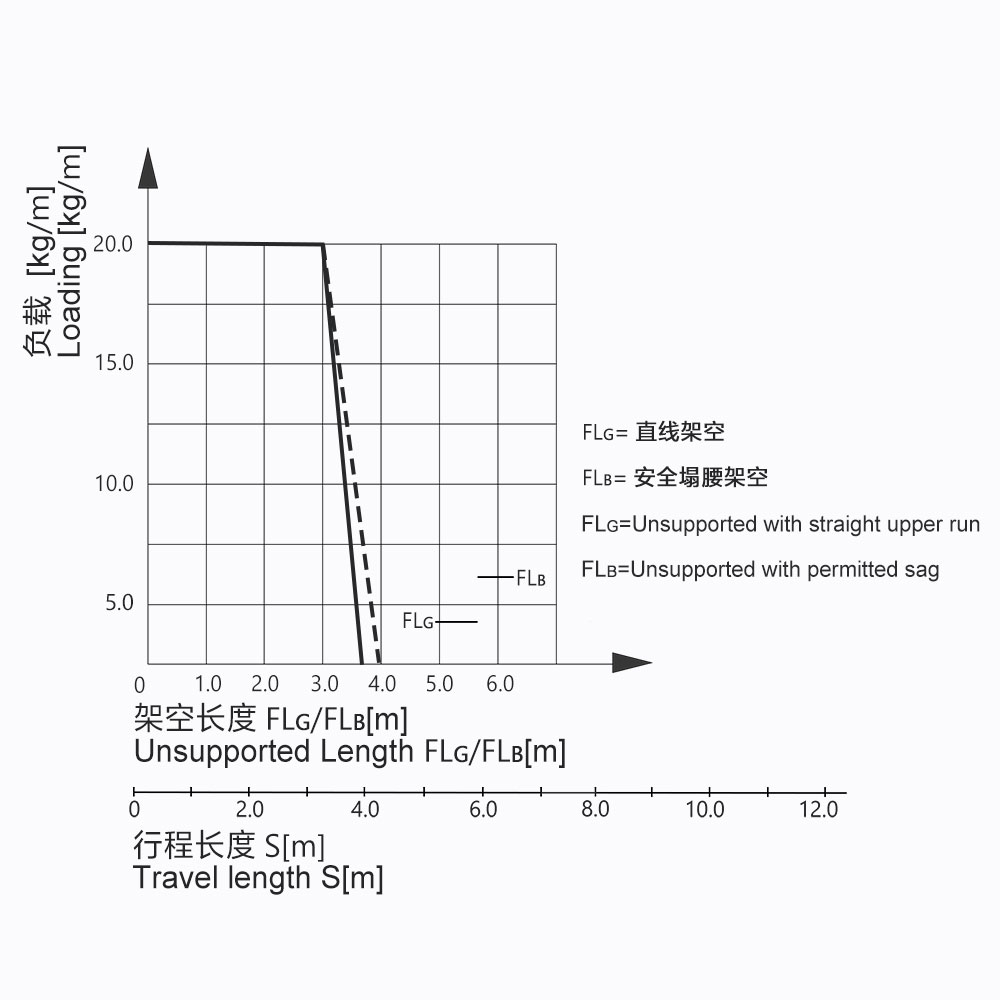

Daim Duab Qhia Txog Kev Thauj Khoom
Daim Ntawv Thov
Cov saw hlau rub tau siv tau ntau yam, txhua qhov chaw uas muaj cov xov hlau lossis cov kav dej txav mus los. Muaj ntau yam kev siv xws li; cov cuab yeej siv tshuab, cov txheej txheem thiab cov tshuab automation, cov tsheb thauj khoom, cov tshuab ntxuav tsheb thiab cov cranes. Cov saw hlau rub tau muaj ntau qhov ntau thiab tsawg.
