ZQ56 Choj hom Load Bearing Zog Drag Saw
Cov saw hlau rub zoo li lub tank saw thiab muaj ntau qhov txuas. Txhua qhov txuas ntawm cov saw hlau rub tuaj yeem qhib tau, uas yooj yim rau kev sib dhos thiab rhuav tshem yam tsis tas siv xov. Tom qab qhib lub hau, koj tuaj yeem tso cov cables, cov kav roj, cov kav cua, cov kav dej, thiab lwm yam. Kuj tseem tuaj yeem muab cov khoom sib cais los cais qhov chaw sab hauv ntawm cov saw hlau zog raws li qhov xav tau.
(1. Cov duab ntawm cov saw hlau rub zoo li lub tank saw, uas yog tsim los ntawm ntau qhov txuas, thiab cov txuas tuaj yeem tig tau dawb.
(2. Qhov siab sab hauv, qhov siab sab nraud thiab lub suab ntawm cov saw hlau rub ntawm tib series yog tib yam, thiab qhov dav sab hauv thiab lub vojvoog khoov R ntawm cov saw hlau rub tuaj yeem xaiv sib txawv.
(3. Lub txuas saw hlau yog tsim los ntawm cov phaj saw hlau sab laug thiab sab xis thiab cov phaj npog sab saud thiab sab hauv qab. Txhua qhov txuas ntawm txoj hlua rub tuaj yeem qhib tau, uas yooj yim sib dhos thiab rhuav tshem yam tsis muaj xov. Tom qab qhib lub hau, koj tuaj yeem muab cov xov hlau, cov kav roj, cov kav cua, cov kav dej, thiab lwm yam rau hauv txoj hlua rub.
(4. Cov khoom sib cais kuj tseem tuaj yeem muab los cais qhov chaw hauv cov saw hlau raws li qhov xav tau.
Qauv Rooj
| Qauv | Sab Hauv Siab × W (A) | Sab Nraud H*W | Qauv | Qhov Khoov Radius | Suab | Qhov ntev tsis txhawb nqa |
| ZQ 56x95 | 56x95 | 94x137 | Hom choj | 125. 150. 200. 250. 300 | 90 | 3.8m |
| ZQ 56x125 | 56x125 | 94x167 | ||||
| ZQ 56x150 | 56x150 | 94x192 | ||||
| ZQ 56x175 | 56x175 | 94x217 | ||||
| qw 56x200 | 56x200 | 94x242 | ||||
| ZQ 56x225 | 56x223 | 94x267 |

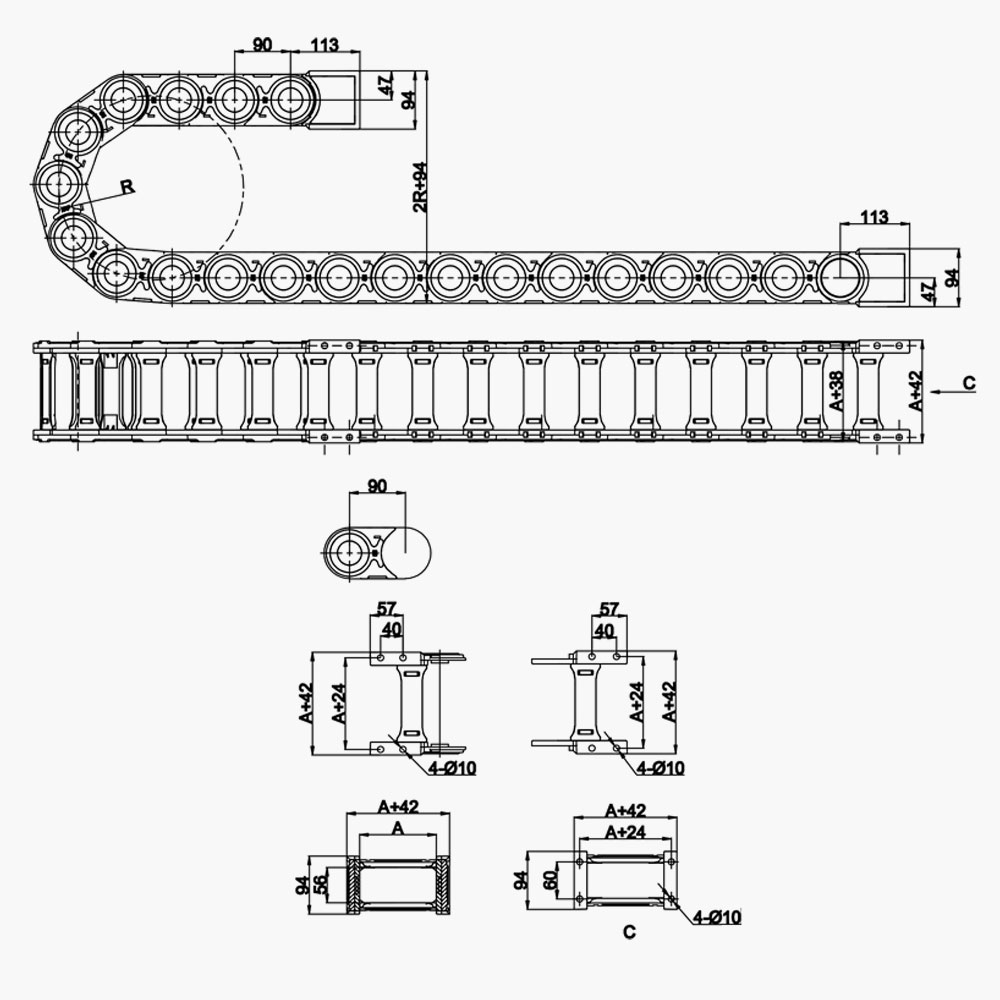

Daim Duab Qhia Txog Qauv

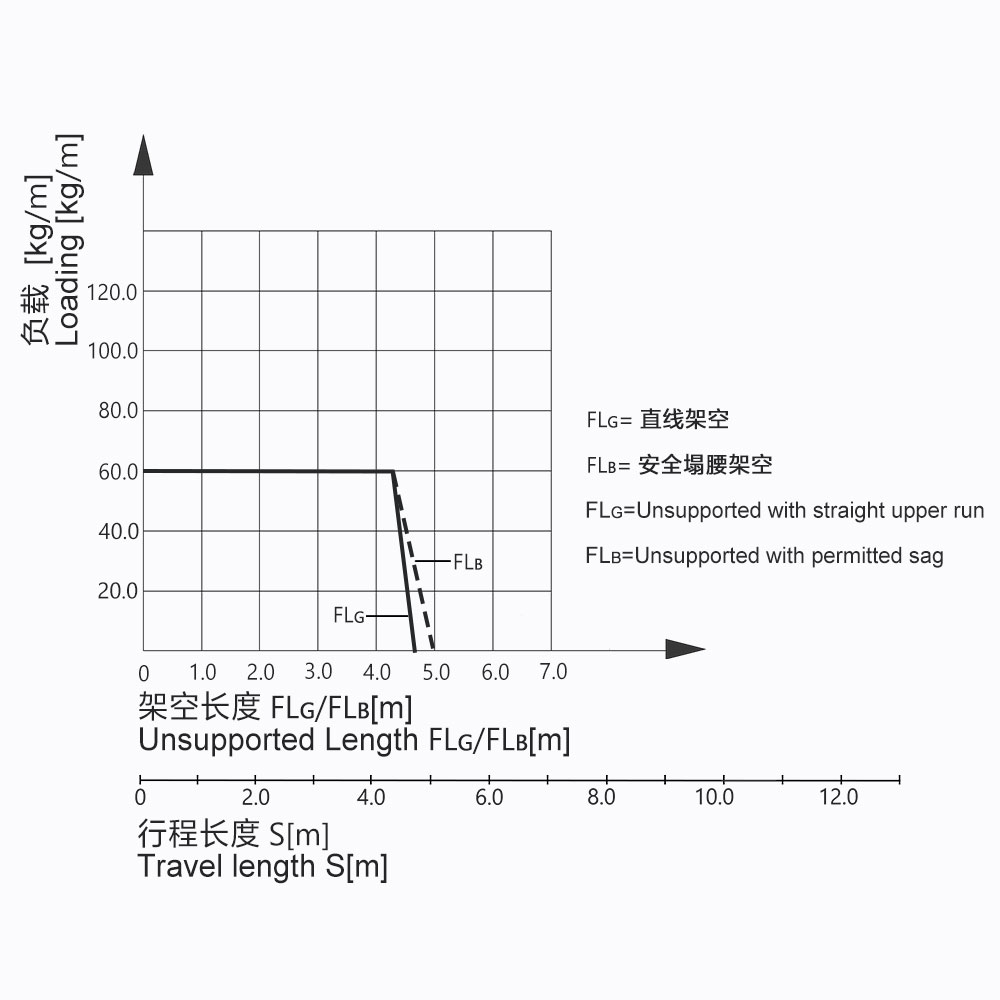

Daim Duab Qhia Txog Kev Thauj Khoom
Daim Ntawv Thov
1. Nws yog tsim rau siv thaum lub sijhawm ntawm kev txav mus los, thiab tuaj yeem rub thiab tiv thaiv cov cables ua hauv, cov kav roj, cov kav cua, cov kav dej, thiab lwm yam.
2. Txhua ntu ntawm txoj hlua rub tuaj yeem qhib tau rau kev teeb tsa thiab kev saib xyuas yooj yim. Suab qis, tsis yooj yim hnav, thiab txav mus los sai thaum lub sijhawm ua si.
3. Towline tau siv dav hauv CNC tshuab cov cuab yeej, cov khoom siv hluav taws xob, cov tshuab pob zeb, cov tshuab iav, cov qhov rooj thiab qhov rai tshuab, cov tshuab txhaj tshuaj molding, cov khoom siv tswj hwm, cov khoom siv nqa thiab thauj mus los, cov chaw khaws khoom tsis siv neeg, thiab lwm yam.
